Useful Tips in Beam Design

May 18, 2021
BLOG NEWS & TRENDS

OVERVIEW

It introduces how to get the design force of 1D member including Location of design forces, 1D Design with a irregular shape force and How to find Max. My.

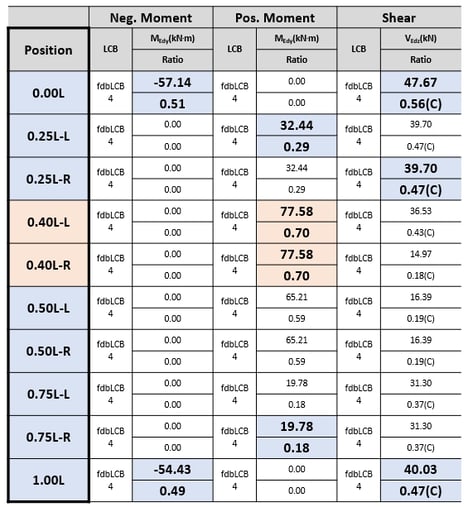

Location of design member forces

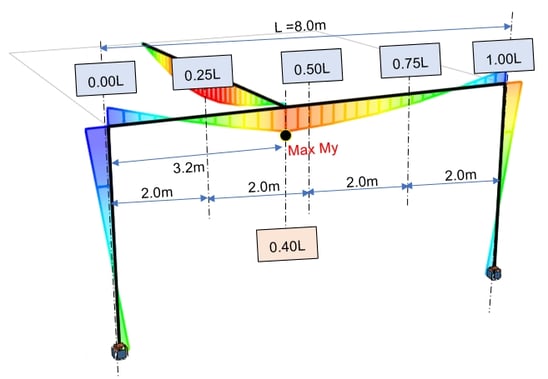

The locations where basic design member forces are measured are illustrated. It is effective only when a uniform load is applied, but in most cases, accurate design is possible with the following method.



1) 0.00L, 0.25L, 0.50L, 0.75L, and 1.00L

2) Location of concentrated load

3) The position contact with other members



12_112_2





1D Design of when the diagram of member force is not normal







12_3

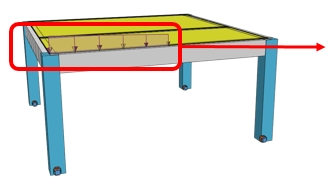

It is difficult to predict the location of Max. My if an atypical load such as the image on the left acts.

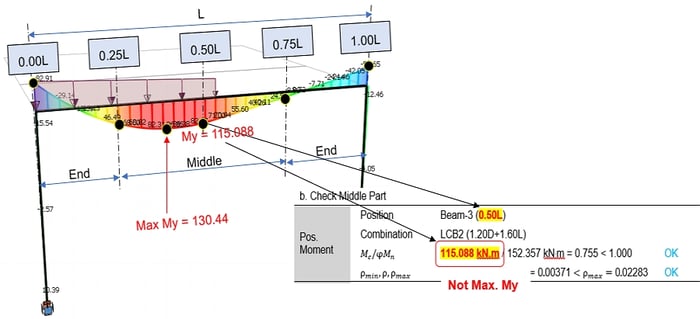

12_4Since Max. My value cannot be found under the following conditions, an incorrect design can be performed.



1) 0.00L, 0.25L, 0.50L, 0.75L, and 1.00L

2) Location of concentrated load

3) The position contact with other members

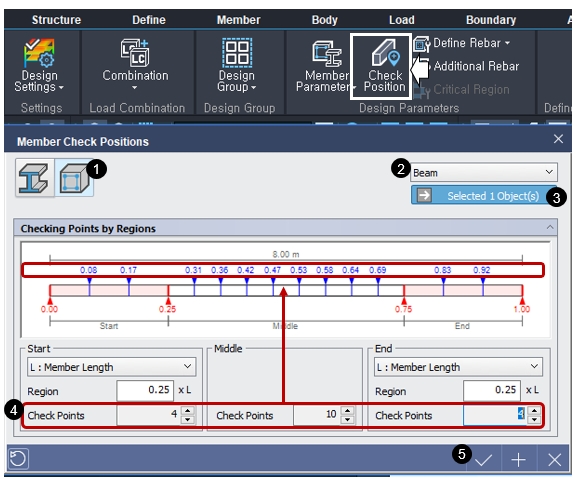

How to find Max. My





12_5



1) Select a material type.

2) Select a member type.

3) Select a target members.

4) Modify No. of check points in each regions.

5) Click "V" button.

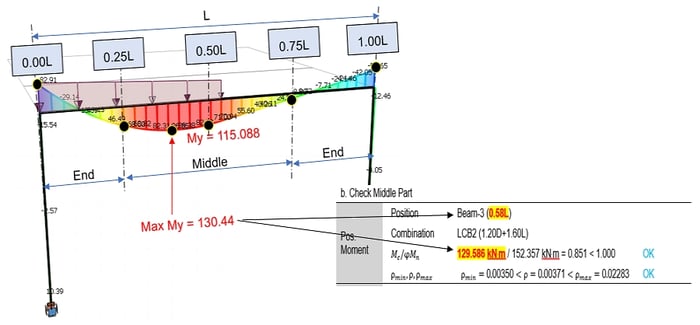

12_6> The larger number of check points, the more accurate value can be obtained.
