In midas nGen, modeling can be performed quickly and accurately using CAD files or grids. Place an architectural floor plan on a specific floor and automatically recognize CAD layers to generate a model automatically. It is possible to model members of various shapes considering eccentricity. The modeling method is similar to the CAD drawing method, so even first-time users can quickly adapt.
It provides an intuitive modeling environment with the same modeling method as the CAD style.
It can automatically recognize muti layers in CAD or grids and model them right away.

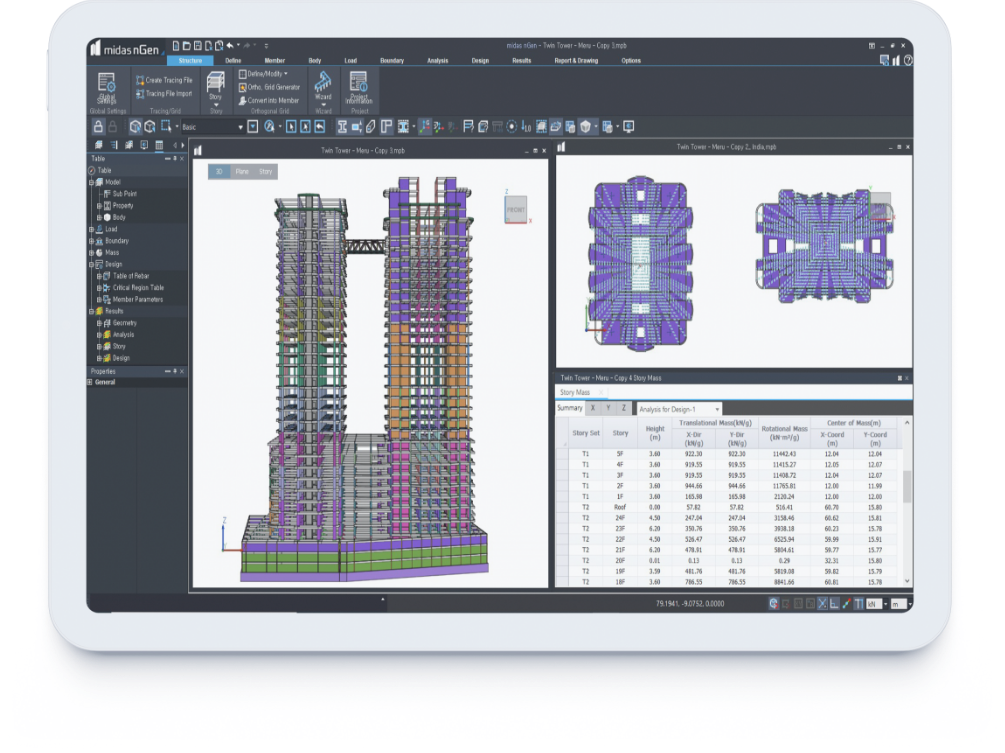

Analysis and design can be performed for each floor in one model. For each floor, boundary conditions such as diaphragms can be conveniently assigned. The results for each floor in each building can be integrated or individually checked.
You can quickly generate multi-story buildings by copy the typical floor model from low to high-rise buildings. It provides an optimized environment for modeling with multi floors.
It is possible to review the structural results of multi-towers at once due to wind and seismic loads.
In midas nGen, we can model various shapes and types of structures and generate drawings, such as irregular beam-column joints, step-down slabs, beams in contact with step-down slabs, transfer beams & slabs, etc.
We can model with various types of members and diverse shapes in a practical project.
We can precisely adjust the offset that must be reflected in the drawing.

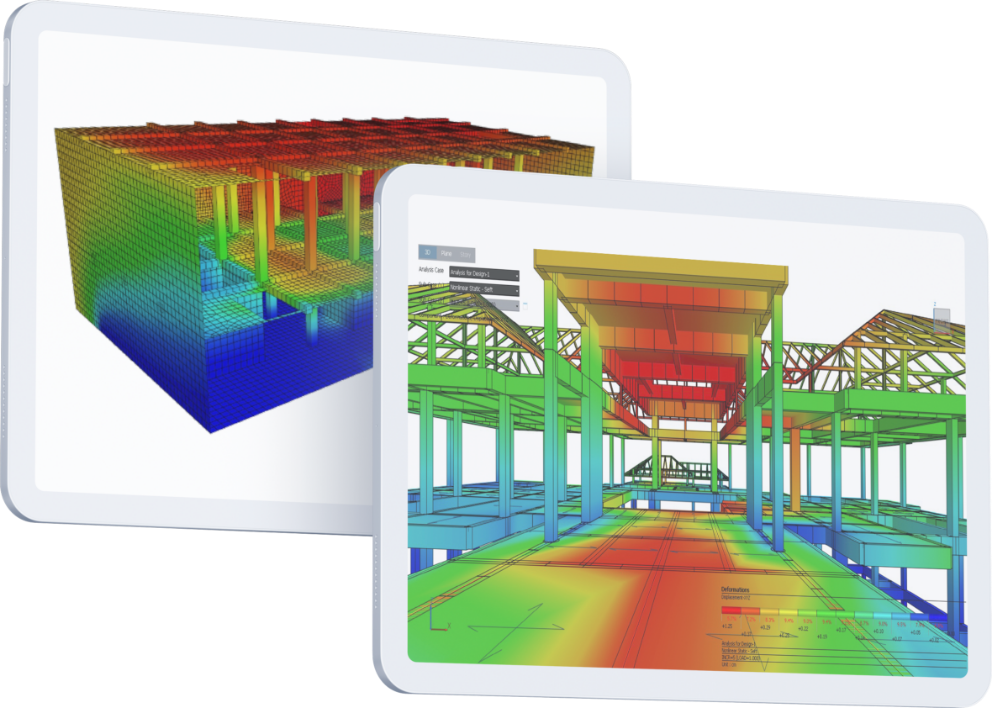

In midas nGen, we can maximize the work efficiency with a brand-new pre & post-processing computational performance. Auto-mesh is possible for plate and shell elements such as slabs and walls, enabling rapid processing even for large-scale models.
The brand-new pre & post-processor and fast rendering speed will enable the users to execute the projects more effectively and efficiently.
Auto-create an analytical model from a geometric shape model for which midas nGen creates fictitious nodes at the connection positions where members meet.
