OVERVIEW

A flat slab is a two-way reinforced concrete slab that usually does not have beams and girders, and the loads are transferred directly to the supporting concrete columns.



The flat plate is a two-way reinforced concrete framing system utilizing a slab of uniform thickness, the simplest of structural shapes. The flat slab is a two-way reinforced structural system that includes either drop panels or column capitals at columns to resist heavier loads and thus permit longer spans.

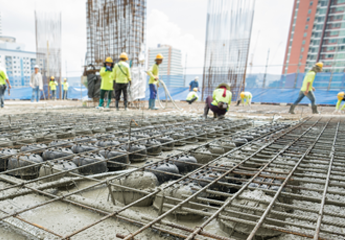

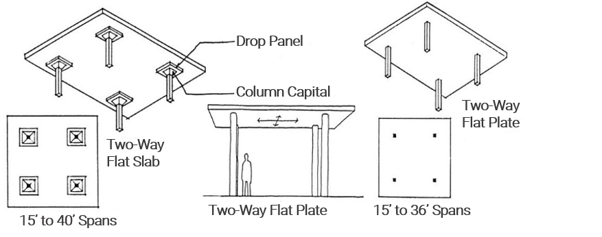

Flat Slab Figure 1-1

1. Advantages of Flat Slab



1.  Flexibility in room layout

   - Partition walls can be placed anywhere.

   - Offers a variety of room layouts to the owner.

   - False ceilings can be omitted.

2. Reinforcement placement is easier

   - As reinforcement detailing of the flat slab is simple, it is easier to place

3. Ease of Framework installation.

   - Big table framework can be used in flat slab

4. Building height can be reduced.

   - Floor height can be reduced and consequently the building height will be reduced.

   - Approximately 10% of the vertical member could be saved.

   - Foundation load will also reduce.

5. Less construction time

   - Use of a big table framework helps to reduce construction time







2. What is column capital & drop panel?



Flat Slab Figure 2_1Uses of column heads (capital):

⋅ Shear strength of flat slab is increased by using column heads.

⋅ Column heads reduce the clear or effective span, and therefore, reduce the moment in the flat slab floor.



Uses of drop panels:

⋅ Drop panels increase the shear strength of flat slab floor.


⋅ Drop panels increase flat slab's negative moment capacity.


⋅ Drop panels reduce deflection by stiffening the flat slabs.







3. How to create a flat slab in nGen



3.1. Determine the thickness of the flat slab

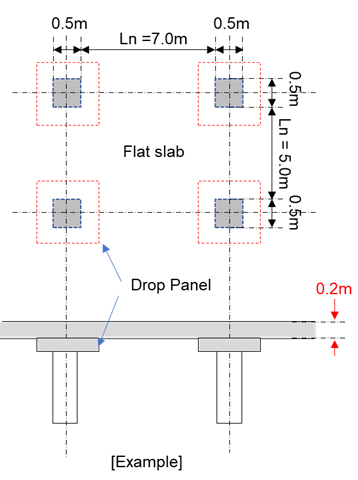

flat slab_modeling_2(1)





[ACI 318M-14]

Table 8.3.1.1 - Minimum Thickness of Non-Prestressed Two-Way Slabs without Interior Beams(mm)

ACI318M-14

When using fy=420Mpa,

In case of flat slab with drop Panel, Slab thickness = Ln/36 = 7.0m/36 = 0.194m → Apply0.20m

* I will set the drop panels in this example

In case of flat slab without drop Panel, Slab thickness = Ln/ 33 = 7.0m / 33 = 0.212m → Apply 0.22m





3.2. Create the flat slab in nGen

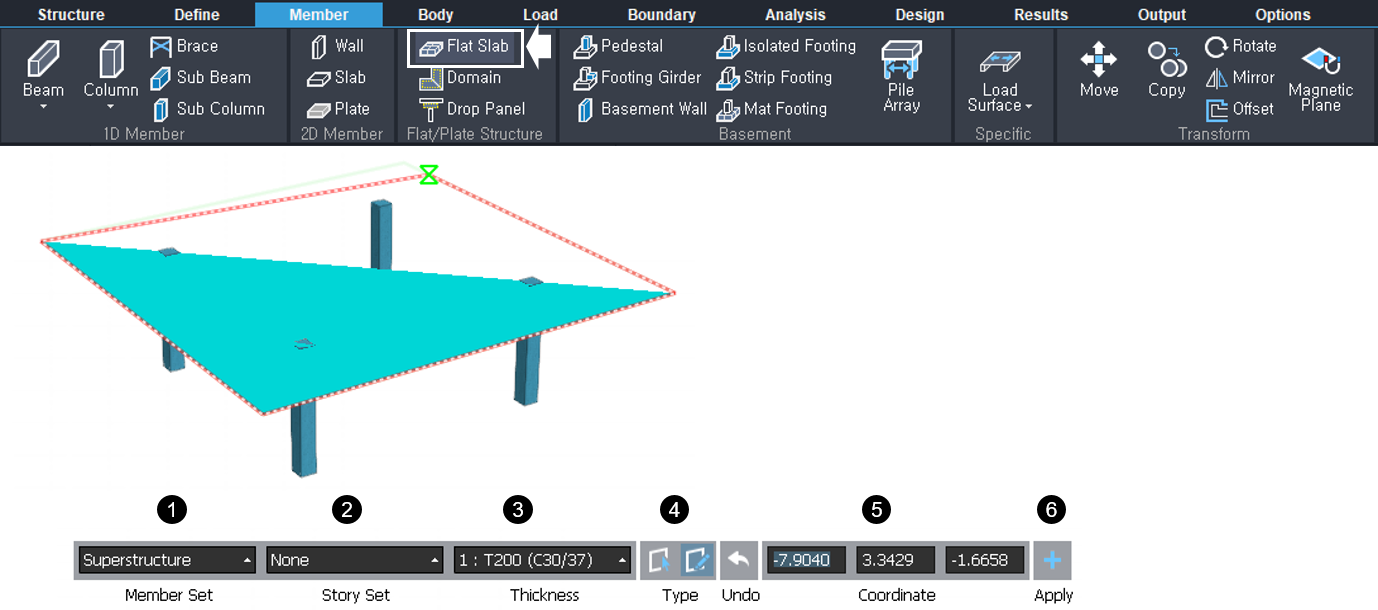

How to Create Flat Slab in nGen Example

Member > Flat/Plate Structure > Flat Slab

❶ Select Member Set.

❷ Select Story Set.

❸ Select Thickness of 0.2m.

❹ Select ‘by Draw’ as the creating type.

❺ Click the corner point of target area.

❻ Click ‘Apply’ or push Enter key.





3.3. How to determine the size and thickness of the drop panel.



  1. How to determine the size of the drop panel

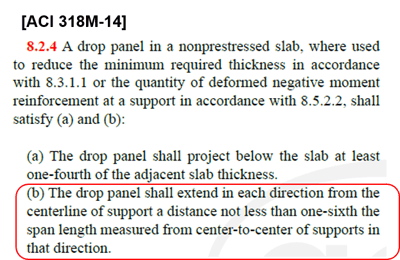

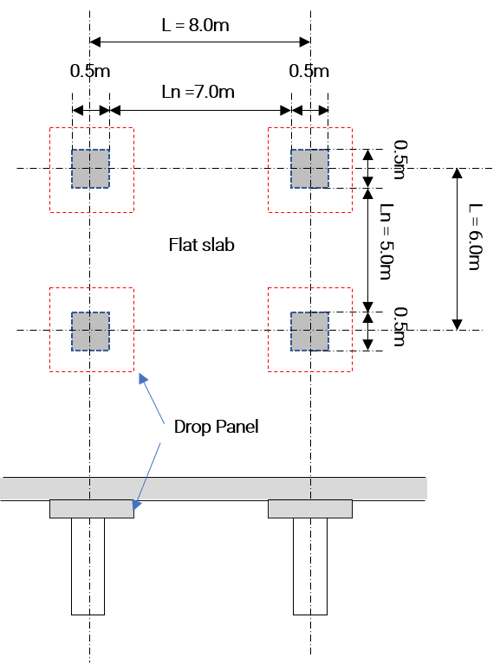

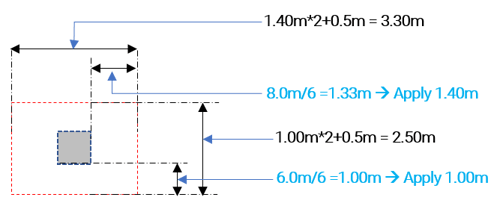

Flat Slab_Reference 2. Section 8.2.4 of ACI 318M-14Flat Slab_Figure 5. Drop Panel ModelFlat Slab_Figure 6a. Determining Size and Thickness of Drop Panel Model









  1. How to determine the thickness of the drop panel

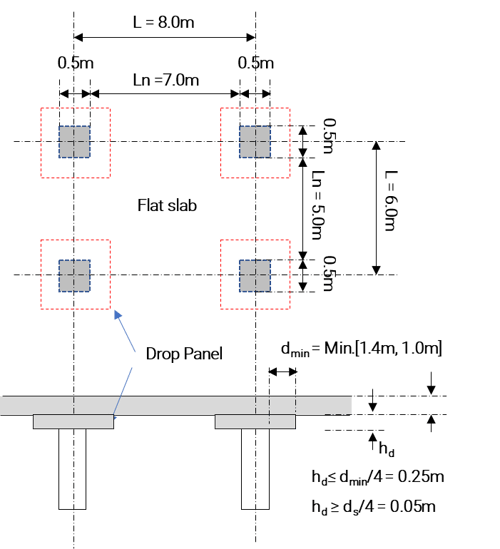

    Flat Slab_Determining Size and Thickness of Drop Panel Model

The two conditions below must be satisfied.


i) The thickness of drop panel below shall not be greater than one-fourth of the face of the column.
hd≤dmin/4=0.25m

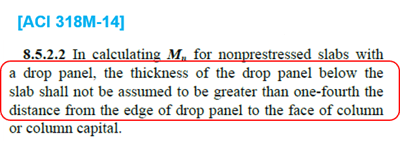

Flat Slab_Reference 3. Section 8.5.2.2 of ACI 318M-14

ii) The thickness of the drop panel shall project below the slab at least one-fourth of slab thickness.
hd≥ds/4=0.05m

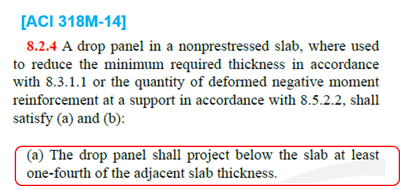

Flat Slab_Reference 4. Section 8.2.4 of ACI 318M-14

So, the thickness of the drop panel is assumed to be 0.40m (≤ ds + Max. hd = 0.2m+0.25m).





Please download the white paper of Structural Design Guide for Flat Slabs below to see the full contents.
