Wind Load as per ASCE 7-16 for the Warehouse with Gable Hip Roof

June 13, 2022
BLOG PROJECT TUTORIAL

Wind Load as per ASCE 7-16



Information of Example Model

This is an explanation how to input wind load data in the warehouse with gable hip roof.

Information of the example model is given as follows.

1

Figure1. Warehouse Example Model


 2-1

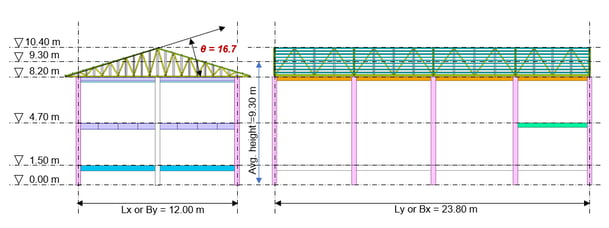

 Figure 2. Warehouse Roof Example Model


3

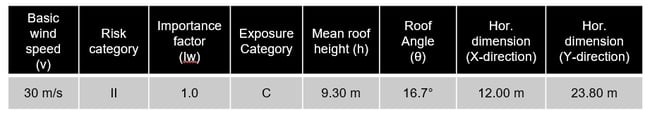

Table 1. Wind Load Data Informations





√ Table of Contents




















Calculation of Wind Load - Velocity Pressure


The velocity pressure should be calculated in order to get the value of the wind load.

  • Velocity Pressure : qz = 0.613KzKztKdKeV2

1) Determination of Ke (Ground Elevation Factor)

It usually applies ' 1.0 ' on the Ground Elevation Factor, Ke, if there is no exceptional case caused.


Ground Elevation FactorFigure 3. Ground Elevation Factor




2) Determination of Kd (Wind Directionality Factor)

It applies ' 0.85 ' since the wind directionality factor is based on the structure.


Wind Directionality FactorFigure 4. Wind Directionality Factor



3) Determination of Kz (Velocity Pressure Exposure Coefficient)

 4-1

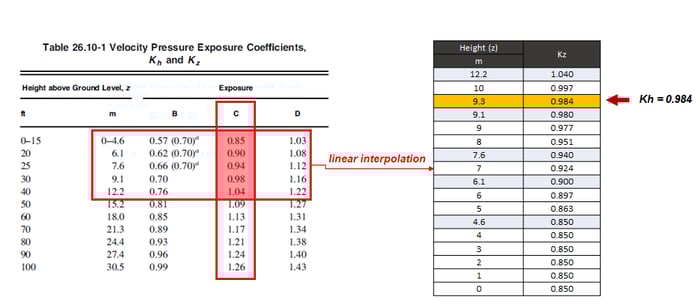

Figure 5. Velocity Pressure Exposure Coefficients





4) Determination of Kzt (Topographic Effects)

  • Kzt = (1+K1K2K3)2

  • Assumed ValuesHill Type : 2S Escarpment

    H = 20m, Lh = 40m, x = 40m  →  H/Lh = 20/40 = 0.5, x/Lh = 40/40 = 1.0


Determination of Topographic EffectsFigure 6. Determination of Topographic Effects




5) Determination of qz and qh

The following is a table that indicates the final value of the velocity pressure after calculating values for all variables. To calculate wind pressure, qh value for the roof level is applied.

Applying the pressure value depending on levels is more exact, but, it is okay to put the load value by using only the value of qh instead.

  • Velocity Pressure : qz = 0.613KzKztKdKeV≈ 500N/㎡ =qh

 5-1

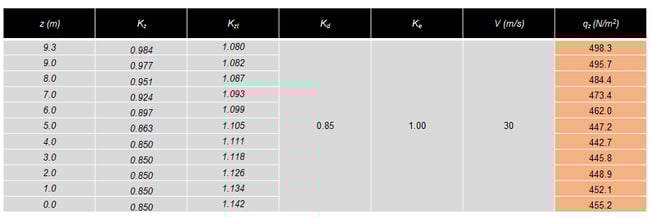

Table 2. Velocity Pressure Value







Calculation of Wind Load - External Wind Pressure


p = qGCP - qi(GCpi)

Case 1) Wind Pressure = External Wind Pressure - Internal Wind Pressure (Positive)

Case 2) Wind Pressure = External Wind Pressure - Internal Wind Pressure (Negative)

Two coefficient values for external pressure and internal pressure are needed in order to satisfy the formula. Basically, wind pressure has two values depending on the direction of internal pressure. If internal pressure is larger than the external pressure, positive internal pressure is generated. In the opposite case, negative internal pressure is generated.


Figure 7. Positive Internal Wind Pressure and Negative Internal Wind Pressure6





1) External Wind Pressure for Gable Roof Direction

Wind ward wall, leeward wall, and side wall are needed to satisfy the calculation of external wind pressure.

The following is an explanation of the calculation for the x-direction and wall.



• Gust Factor (G) = 0.85 (Assumed Value)

   * You can get the gust factor as per 26. 11. 4

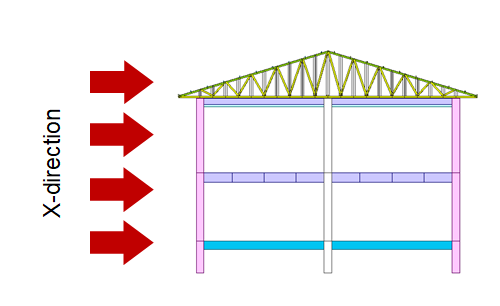

7-1Figure 8. External Wind Pressure in X-Direction







• Wall Pressure Coefficients (Cp)


Wall Pressure Coefficients - 1Figure 9. Wall Pressure Coefficients - 1



                                             * L/B =12/ 23.8 = 0.504






9-1
Figure 10. Wall Pressure Coefficients - 2

                           * Bx = 23.8m, Ly = 12m → L/B = 0.504

Red Box : Wind load for windward wall (Wx(+ or -)_Windward)

                    q_wind = qzGCP = 500 * 0.85 * 0.8 = 340 N/m2



Blue Box : Wind load for Leeward wall (Wx(+ or -)_Leeward)

                     q_lee = qhGCP = 500 * 0.85 * - 0.5 = -212.5 N/m2



Yellow Box : Wind load for Side wall (Wx(+ or -)_Side)

                         q_side = qhGCP = 500 * 0.85 * - 0.7 = -297.5 N/m2





The following is an example of the calculation for the roof in X-Direction.



• Gust Factor (G) = 0.85 (Assumed Value)

   * You can get the gust factor as per 26. 11. 4

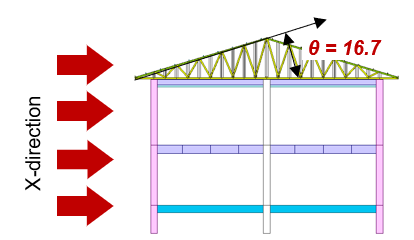

10-1Figure 11. External Wind Pressure for the Roof in X-Direction




• Roof Pressure Coefficients, Cp, for use  with qh


11-1

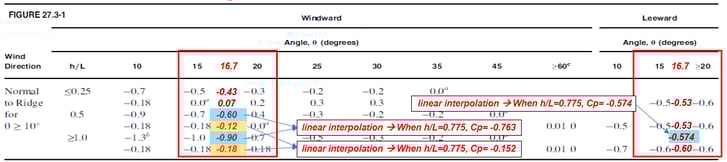

Figure 12. Roof Pressure Coeffocoents - 1


12-1
Figure 13. Roof Pressure Coeffocoents - 2

* h = 9.3m, Ly = 12m → h/L = 0.775



Red Box : Wind load for windward roof (Wx(+ or -)_Windward)

                   q_wind = qzGCP = 500 * 0.85 * -0.763 = -324.273 N/m2

                   q_wind = qzGCP = 500 * 0.85 * -0.152 = -64.6 N/m2



Blue Box : Wind load for Leeward wall (Wx(+ or -)_Leeward)

                     q_lee = qhGCP = 500 * 0.85 * - 0.574 = -243.95 N/m2



2) External Wind Pressure for Gable Roof Orthogonal Direction

The following is an explanation of the calculation for the y-direction. The wall pressure for the y-direction can be calculated as the x-direction way.



• Gust Factor (G) = 0.85 (Assumed Value)

   * You can get the gust factor as per 26. 11. 4

13-1

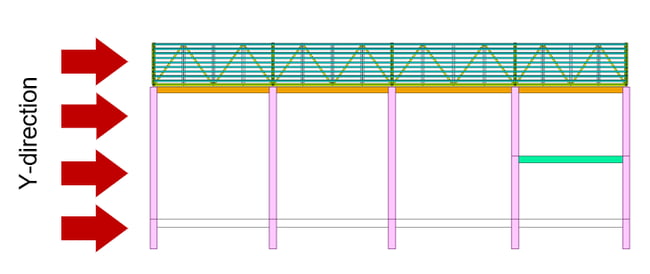

Figure 14. External Wind Pressure in Y-Direction





• Wall Pressure Coefficients (Cp)

14-1

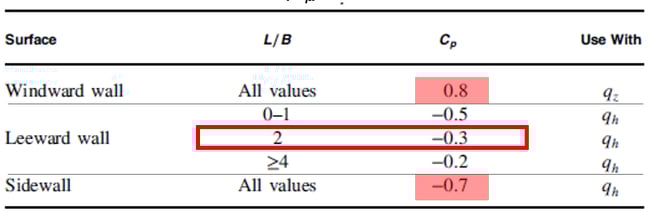

Figure 15. Wall Pressure Coefficients - 1
         * L/B =23.8/ 12 = 1.98 (about 2)


Wall Pressure Coefficients - 2Figure 16. Wall Pressure Coefficients - 2

* By = 12m, Lx = 23.8m → L/B = 1.98

Red Box : Wind load for windward wall

                    q_wind = qzGCP = 500* 0.85 * 0.8 = 340 N/m2



Blue Box : Wind load for Leeward wall

                    q_lee = qhGCP = 500 * 0.85 * -0.3 = -127.5N/m2



Yellow Box : Wind load for Side wall

                     q_side = qhGCP = 500* 0.85 * -0.7 = -297.5N/m2





The following is an example of the calculation for the roof in Y-Direction. For the roof in slope and orthogonal direction, it should be considered as "0".



• Gust Factor (G) = 0.85 (Assumed Value)

   * You can get the gust factor as per 26. 11. 4

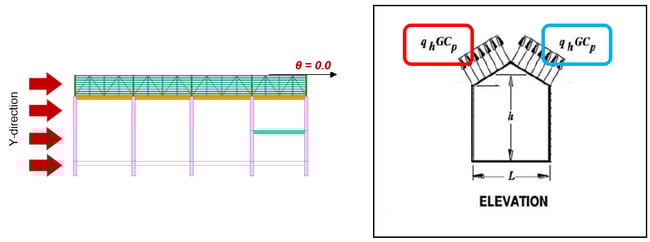

17-1Figure 17. External Wind Load in Y-Direction and Angle



* h = 9.3m, Lx = 23.8m → h/L = 0.391



Red Box : Wind load for windward roof (Wx(+ or -)_Windward)

                  q_wind = qzGCP = 500 * 0.85 * -0.9 = -382.5 N/m2

                 q_wind = qzGCP = 500 * 0.85 * -0.18 = -76.5N/m2




• Roof Pressure Coefficients, Cp, for use with qh


Roof Pressure Coefficients

Figure 18. Roof Pressure Coefficients







Calculation of Wind Load - Internal Wind Pressure




1) Internal Wind Pressure for Gable Roof Orthogonal Direction


19-1Figure 19. Internal Wind Pressure for Gable Roof Orthogonal Direction

Partially enclosed buildings in enclosure classification would be applied in this example. Therefore, the value of the internal pressure coefficient can be assumed as +0.55 and -0.55.

Table for Internal Pressure CoefficientFigure 20. Table for Internal Pressure Coefficient




2) Wind Pressure on Wall for Gable Roof Direction (along x-direction)

Wind pressure in the x-direction is given as follows. The values of each case in the wind pressure are calculated by applying the values of the external pressure and internal pressure.

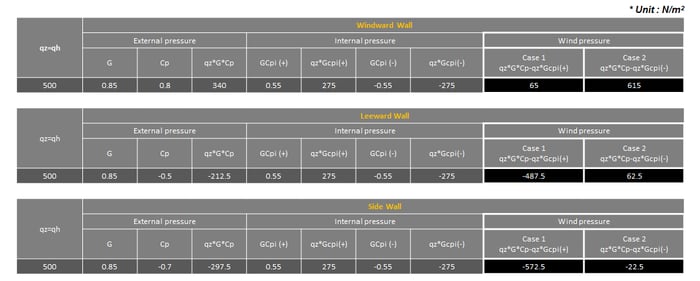

21-1Table 3. Wall Wind Pressure Values along X-Direction





3) Wind Pressure on Roof for Gable Roof Direction (along x-direction)

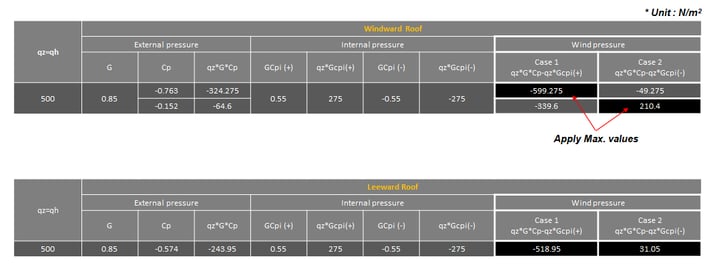

22-1Table 4. Roof Wind Pressure Values along X-Direction






4) Wind Pressure on Wall for Gable Roof Orthogonal Direction (along y-direction)

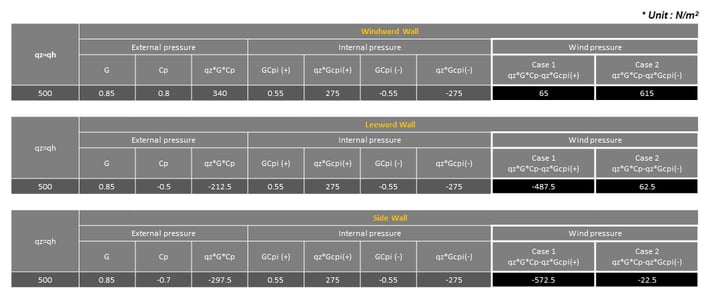

23-1Table 5. Wall Wind Pressure Values along Y-Direction







5) Wind Pressure on Roof for Gable Roof Orthogonal Direction (along y-direction)

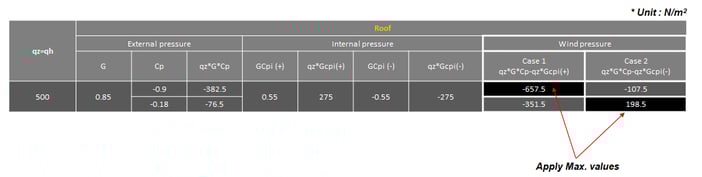

25-1Table 6.  Roof Wind Pressure Values along Y-Direction







Wind Pressure Summary


The final values for cases 1 & 2 are as follows.

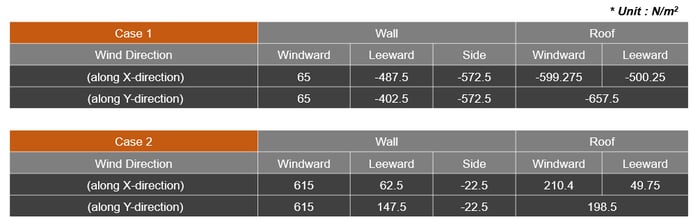

40Table 7. Values for Cases 1 and 2

41
Figure 21. Direction Sign of the Building

• Sign (+) : Direction to the inside of the building

• Sign (-) : Direction to the outside of the building







Input a Wind Load




1) Create Load Cases for the Wind Load


Static Load Cases Dialog BoxFigure 22. Static Load Cases Dialog Box

* Tips : you can easily distinguish each case if you put the name above.

Considered Factors

- Case : Case 1 & Case 2

- Wind Direction : X-Direction & Y- Direction

- Wind Sign : (+) & (-)



2) Create a Floor Load Cases for Wind Load


27-1Figure 23. Information of Floor Load Cases for Wind Load






3) Input Wind Load as a Floor Load


28-1Figure 24. Floor Load Type Dialog Box for Case 1

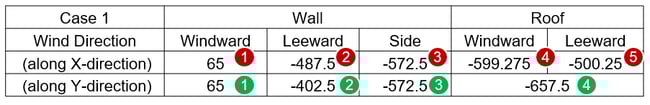

29-1Table 8. Case 1 Values of Wall and Roof


• Sign (+) : Direction to the inside of the building

• Sign (-) : Direction to the outside of the building

When inputting the wind load into the model,  the sign must be corrected according to the direction of the load.

It also creates a floor load type for the opposite direction.


Case 1 Name List Dialog Box
Figure 25. Case 1 Name List Dialog Box

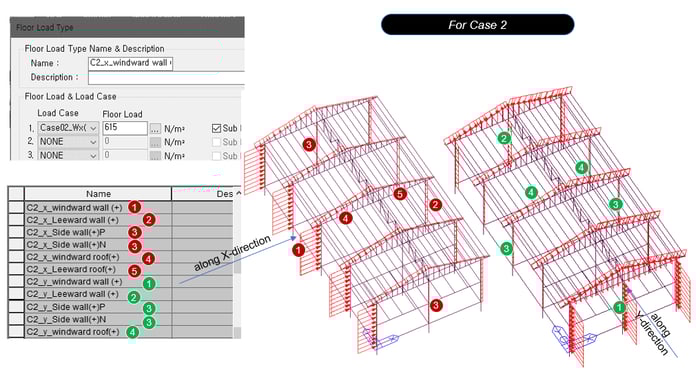

30-1Figure 26. Floor Load Type Dialog Box for Case 2

31-1

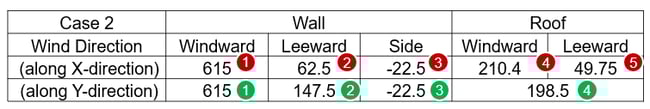

Table 9. Case 2 Values for Wall and Roof

• Sign (+) : Direction to the inside of the building

• Sign (-) : Direction to the outside of the building

When inputting the wind load into the model,  the sign must be corrected according to the direction of the load.

It also creates a floor load type for the opposite direction.


Case 2 Name List Dialog BoxFigure 27. Case 2 Name List Dialog Box





4) Generate Load Combinations with a Wind Load

Before performing analysis and design, we recommend you make load combinations with a wind load. Even if it is not automatically generated, you can easily create it by using a table for the load combination or copying it from excel.


Load Combination Example - 1 Figure 28. Load Combination Example - 1

Load Combination Example - 2Figure 29. Load Combination Example - 2
